Garmin eTrex 32x Review

November 09, 2019
Home » GPS Reviews » Garmin eTrex 32x Review

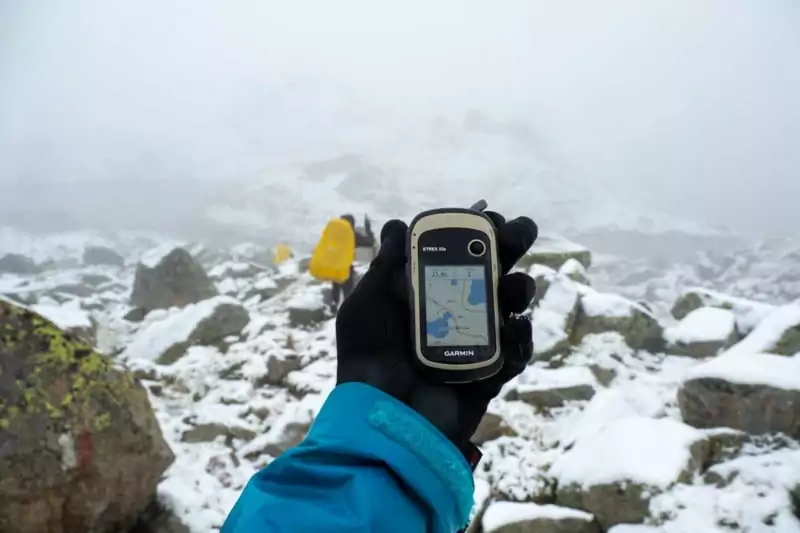

Garmin eTrex 32x - Reviewing in all weather conditions
Garmin eTrex 32x – in this review we will discuss the Garmin eTrex 30x successor in detail, a keyboard-operated GPS device that provides all the basic features you need for a variety of outdoor activities.

The Garmin eTrex series – the first eTrex was born in 1999 – defines together with the Garmin GPSMAP series the term "GPS handheld".

The eTrex 32x is characterized in particular by the following strengths:

  •  Small, light, handy
  •  Excellent display
  •  Fast GPS positioning, accurate tracks
  •  Class leading battery life

What has Garmin improved in the new eTrex generation?

Actually, not much!

  •  Small cosmetic changes in the setup (menus: Tracks, Reset)
  •  Larger internal memory: 8 GB (32x) vs. 3.7 GB (30x)

Let’s get right to the internal memory. Only about 90 MB are available – the pre-installed TopoActive map eats up most of the memory! For example, if you want to install additional cards, load numerous GPX tracks and various pocket queries with geocaches and waypoints, you need an additional microSD card (up to 32 GB). This gives rise to the suspicion that during the development of the 32x, the map department did not speak to the hardware department (or vice versa).

Other desirable technical innovations have also not been implemented, such as a modern USB connection (Micro-USB or USB-C instead of the built-in Mini-B). A weakness of the predecessor eTrex 30x is the slow processor. Zooming and moving the map or calling up an extensive POI collection can take some time – this shortcoming also persists.

Our wishlist is similar to the GPSMAP 64sx, especially regarding the menu: A few improvements would be great, for example functions to sort or filter the tracks in the track manager.

Hopefully a serious problem with the predecessors has been fixed: In our test fleet, an eTrex 20 and an eTrex 30 died. Reason: The rubber coating is broken, the keys got lost. Result: The device is no longer usable, which can lead to serious trouble during outdoor tours. Only an endurance test can show whether this weak point has been eliminated – we will report!

Enough of the criticism – the eTrex 32x has so many strengths that make it our first choice for long, weight-optimized tours and kayaking!


Garmin eTrex 32x Experience – GPS Receiver

The Garmin eTrex series features a patch antenna. This also applies to the eTrex 32x – this means that the best GPS reception is theoretically achieved when the device is aligned horizontally.

Our experience has shown that track recordings are generally very accurate, even during an outdoor activity such as hiking, when the eTrex is attached to the backpack and the GPS antenna is therefore not well positioned.

In this discipline, the eTrex 32x is on the same level as our favourite – the GPSMAP 64sx. But the 32x has another strength: The position is available very fast after switching on the device – and therefore much faster than with the GPSMAP 64sx!

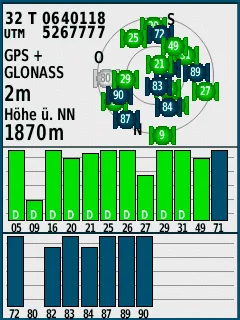

GNSS settings (left / right)

  • GPS

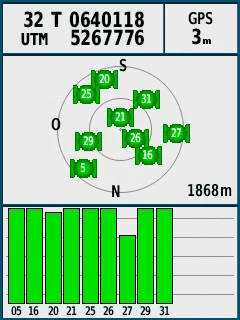

eTrex 32x GPS

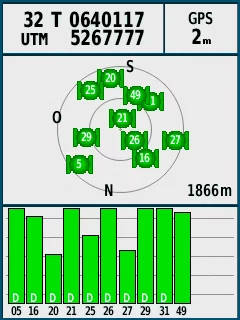

eTrex 32x GPS + EGNOS

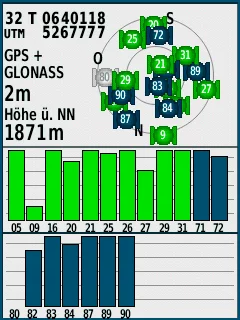

eTrex 32x GPS + GLONASS
Garmin eTrex 32x Review

Garmin eTrex 32x Review – Battery Life

Garmin specifies 25 hours as battery life. We have tried the 32x with eneloop rechargeable batteries, we get the following times (in hh:mm).

Energy saving mode (all consumers off)

  • 35:00*
  • 40:30**

Power mode (all loads on)

  • 10:15*
  • 10:50*
  • 13:00**
  • 12:55**

* white eneloop, ** black eneloop proAmazon

Depending on the use case, the times to be achieved are between these values. The 25 hours indicated by Garmin thus appear very realistic.

This makes the eTrex 32x ideal for weight-optimized tours, especially in combination with powerful and comparatively light lithium batteries (2x AA Energizer Lithium 30.3 g; 2x AA eneloop 59.5 g).

Batteries cannot be charged in the eTrex (as is the case with Oregon, GPSMAP 64sx or GPSMAP 66s, for example); from our point of view, this is a function that can be dispensed as the charging process is very slow.


Garmin eTrex 32x – Display

The small 2.2-inch display offers excellent readability. In addition there is a resolution like no other outdoor handheld from Garmin has – maps, fonts etc. appear razor sharp.

  •  eTrex 32x: 4,987 pixels/cm² (3.5 x 4.4 cm, 240 x 320 pixels)
  •  GPSMAP 66s: 4,010 pixels/cm² (3.8 x 6.3 cm, 240 x 400 pixels)
  •  Oregon 700: 4,010 pixels/cm² (3.8 x 6.3 cm, 240 x 400 pixels)
  •  eTrex Touch: 1,940 pixels/cm² (3.6 x 5.5 cm, 160 x 240 pixels)
  •  GPSMAP 64sx: 1,940 pixels/cm² (3.6 x 5.5 cm, 160 x 240 pixels)

You have to arrange yourself with the small area, but it is perfectly sufficient for navigating with tracks – certainly the most frequently used navigation method.


eTrex 32x Review – Interfaces

The following interfaces are available:

  •  USB (type Mini-B) for data exchange and power supply.
  •  ANT+ to connect to heart rate, cadence, temperature sensor, Garmin chirp or VIRB action camera and to exchange data with compatible Garmin devices (transfer waypoints, routes, tracks & geocaches).

A feature frequently requested by users – the wireless import of GPX files from a smartphone – is not available. users with Android smartphones can at least import via USB and OTG cableAmazon.

Garmin eTrex 32x – Handling & Operations

As already mentioned, two eTrex strengths are size (5.4 x 10.3 x 3.3 cm) and weight (152 g with eneloops). So the 32x fits in pretty much any bag, is handy and lightweight.

The operation with five keys and thumbstick takes getting used to (generation "Smartphone"), but can be learned quickly, especially if all possibilities for individualizing the user interface are exhausted. The Garmin eTrex 32x can also be easily operated with one hand, the same applies to finger gloves that are not too thick.

As with all Garmin GPS handhelds, there are several pre-configured profiles for different outdoor activities to choose from. Additional profiles can be created and highly personalized.

The two illustrations on the right show our main menu for a profile "Hiking": 11 applications, in addition there is a map, trip computer, altitude profile and destination input page.

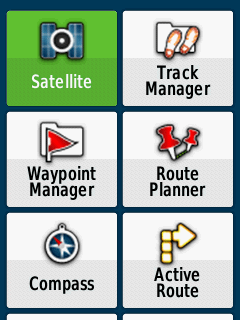

eTrex 32x - Hiking Menu 1

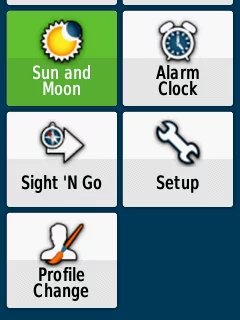

eTrex 32x - Hiking Menu 2
Garmin eTrex 32x Review

Garmin eTrex 32x Review – Functions

The Garmin eTrex 32x offers – similar to the recently reviewed GPSMAP 64sx – the proven functionality of Garmin handheld devices. This includes navigating with tracks, routes, waypoints, POIs and geocaches, but also the many additional functions such as proximity alarms, barometer, calendar and alarm clock.

The calculation of routes is done according to the parameters "off road, on road for time, on road for distance" or "car/motorcycle, pedestrian, bicycle".

Navigating with tracks is, as usual with Garmin, quite minimalistic – you simply have to follow the magenta-colored route on the map! There is no helpful routing, e.g. to the starting point of a track, nor is there any warning when deviating from the track default.

Several functions are available for special tasks, including waypoint projection, man overboard (MOB), sight 'n go and compass (CDI) – important e.g. for sea kayaking. Geocachers have paperless geocaching available.

As with the GPSMAP 64sx, the eTrex 32x can be used for any outdoor tour! The configuration and learning of all navigation functions takes some time and practice.


eTrex 32x – Maps & Accessories

The Garmin eTrex 32x comes with a worldwide base map and a TopoActive map for Europe. The TopoActive map is based on OpenStreetMap data, but the map has no contour lines (figures below). However, you can activate a shaded relief to visualize the morphology – we would still prefer contour lines. All in all, this pre-installed topo map is very well suited as a basis for navigating with tracks.

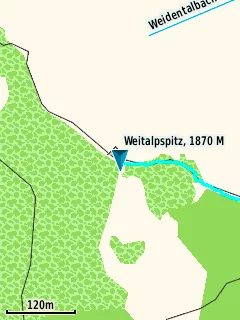

eTrex 32x - TopoActive map

Garmin TopoActive map missing contour lines

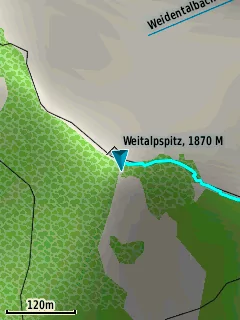

eTrex 32x - TopoActive + shaded relief

Garmin TopoActive map and shaded relief

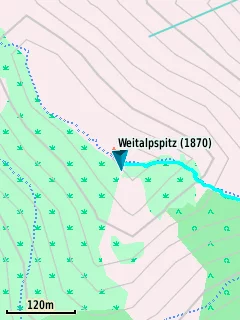

eTrex 32x - OpenStreetMap with contour lines

OpenStreetMap with contour lines

The scope of delivery is minimalist. There is only one USB cable in the sales package. In addition, you need batteries and a memory card, at least one holder for the backpack and / or a bicycle holder.

Garmin provides several free software. Garmin Express or the WebUpdater for managing and installing updates, the POI-Loader for installing additional POIs and BaseCamp for planning and managing tours (all for Windows and Mac).


Difference – eTrex 32x – eTrex 22x

The eTrex 32x also has the following features:

  • Barometric altimeter for precise altitude information and to display the air pressure when used as a weather station,
  • 3-axis compass for correct indication of directions when stationary or at very low speed,
  • Wireless connectivity via ANT+ to connect to sensors or exchange data with compatible Garmin handsets (see above, Interfaces).

The practical use – especially of the barometric altimeter – is high, therefore we recommend the eTrex 32x.

  • Explore confidently with the reliable handheld GPS
  • 2.2” sunlight-readable color display with 240 x 320 display pixels for improved readability
  • Preloaded with Topo Active maps with routable roads and trails for cycling and hiking
  • Support for GPS and GLONASS satellite systems allows for tracking in more challenging environments than GPS alone
  • 8 GB of internal memory for map downloads plus a micro SD card slot
  • eTrex 32x adds a 3-axis compass and barometric altimeter
  • Battery life: up to 25 hours in GPS mode with 2 AA batteries
(* = affiliate link / image source: Amazon partner program)
Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on https://www.amazon.com/ at the time of purchase will apply to the purchase of this product.


Garmin eTrex 32x

Garmin eTrex 32x Review – Summary

The Garmin eTrex 32x Amazon features the same strengths and weaknesses as its direct predecessor. However, it is incomprehensible that the internal memory of the new generation is so small.

We recommend the Garmin eTrex 32x for a variety of outdoor activities. But especially for activities in which it can play off its special advantages: Size, weight and battery life that set standards.



Small, light, handy


Excellent & high resolution (but small) display


Excellent GPS reception


Stunning battery life


All necessary navigation features


Wide range of maps (Garmin, OSM, …)



Small internal memory


Slow zooming and moving the map, calling up lists, etc.


Outdated USB interface

  • GPS 100% 100%
  • Battery 100% 100%
  • Display 100% 100%
  • Handling 60% 60%
  • Navigation 80% 80%
  • Features 80% 80%
  • Maps 100% 100%
  • Final Score 90% 90%
